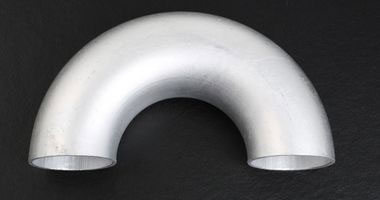

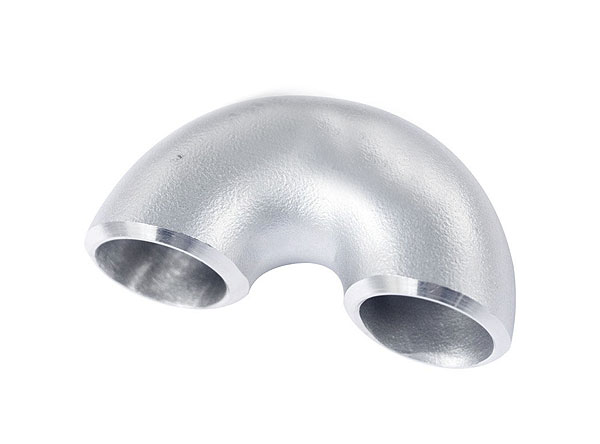

Codo de aluminio
|
|||||

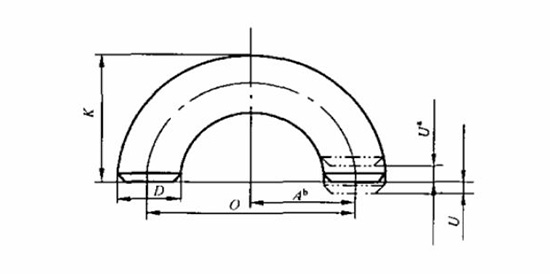

Nominal Dimension DN |
Bevel D |
Center to Center O I Series |
Bottom to Top K |
||
I Series |
Ⅱ Series |
I Series |
Ⅱ Series |
||
15 |
21.3 |
18 |
76 |
48 |
47 |
20 |
26.9 |
25 |
76 |
51 |
51 |
25 |
33.7 |
32 |
76 |
56 |
54 |
32 |
42.4 |
38 |
95 |
70 |
67 |
40 |
48.3 |
45 |
114 |
83 |
80 |
50 |
60.3 |
57 |
152 |
106 |
105 |
65 |
73.0 |
76 |
190 |
132 |
133 |
80 |
88.9 |
89 |
229 |
159 |
159 |
90 |
101.6 |
|
267 |
184 |
|
100 |
114.3 |
108 |
305 |
210 |
206 |
125 |
141.3 |
133 |
381 |
262 |
257 |
150 |
168.3 |
159 |
457 |
313 |
308 |
200 |
219.1 |
219 |
610 |
414 |
414 |
250 |
273.0 |
273 |
762 |
518 |
518 |
300 |
323.9 |
325 |
914 |
619 |
620 |
350 |
355.6 |
377 |
1067 |
711 |
722 |
400 |
406.4 |
426 |
1219 |
813 |
823 |
450 |
457 |
480 |
1372 |
914 |
925 |
500 |
508 |
530 |
1524 |
1016 |
1026 |
550 |
559 |
|
1676 |
1118 |
|
600 |
610 |
630 |
1829 |
1219 |
1229 |
